The main colloid mill advantages and disadvantages follow directly from its purpose: it is an intensive wet-processing machine for particle-size reduction, dispersion, emulsification, and homogenization of a prepared, flowable material. It is useful when a liquid, slurry, emulsion, or paste must receive concentrated rotor–stator treatment. It is not a general dry grinder, a bulk mixer, or a complete production line.
For road-construction materials, this distinction is especially important. A colloid mill can serve as the central high-shear stage in bitumen-emulsion production or in a suitable bitumen-modification process, but preparation, dosing, heating, pumping, circulation, storage, and finished-product handling require separate equipment.
What Process Does a Colloid Mill Perform?
A colloid mill processes material in a liquid or semi-liquid state. The feed must reach the working zone consistently and remain flowable under the selected process conditions. Calling the machine a “mill” does not make it suitable for dry powder production.
| Required operation | Colloid mill role | What may be needed separately |
|---|---|---|
| Dry grinding | Not the normal colloid-milling duty | A grinder designed for dry solids, with suitable classification and dust handling |
| Bulk mixing | Does not replace vessel-wide blending and circulation | A tank mixer or agitator |
| Wet particle-size reduction | Reduces suitable particles or agglomerates within a flowable liquid phase | Coarse crushing, premixing, or feed conditioning when required |
| Dispersion | Distributes suitable particles through the continuous phase under intensive shear | Accurate dosing and initial wetting or premixing |
| Emulsification | Disperses one prepared liquid phase in another for a suitable formulation | Separate phase preparation, metering, and product handling |
| Homogenization | Improves uniformity as the material passes through the working zone | Downstream testing to verify that the required result was achieved |
The actual duty may combine several of these operations. A bitumen-emulsion mill, for example, combines and disperses bitumen in an aqueous medium. In polymer-modified bitumen, the objective can include wet reduction and dispersion of a suitable modifier in flowable binder. These are different formulations and should not be treated as interchangeable applications.
How the Rotor-Stator Working Zone Operates

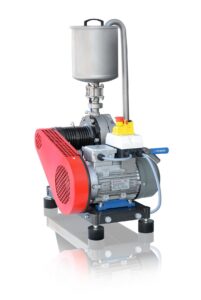

A colloid mill contains a rotating rotor and a stationary stator. Prepared feed enters the working chamber and passes through the restricted zone between these elements. Relative motion, changing flow velocity, turbulence, and shear apply intensive mechanical treatment to the material.
This localized action distinguishes the mill from a conventional tank agitator. An agitator establishes bulk circulation and blends vessel contents. A colloid mill treats the stream that passes through its working zone. Many production systems need both devices.
The working gap is one process variable, not a universal quality setting. A smaller gap should not automatically be assumed to give a better product. Gap selection must be considered with feed condition, initial particle size, solids content, viscosity, temperature, feed rate, required result, and equipment instructions.
Colloid Mill Advantages and Disadvantages at a Glance
| Potential advantage | Engineering qualification or corresponding limitation |
|---|---|
| Combines wet size reduction, dispersion, emulsification, and homogenization in one processing stage | The exact result depends on the formulation; not every application requires or achieves all four operations. |
| Provides concentrated inline rotor–stator treatment | It does not provide all the bulk blending, phase preparation, or storage functions of tanks and mixers. |
| Can be integrated into a continuous production arrangement | Stable operation depends on controlled feeding, suitable pumps, piping, valves, instrumentation, and downstream resistance. |
| Allows process development through changes in gap, feed rate, and number of cycles | Settings cannot be copied safely from an unrelated recipe; representative testing may be necessary. |
| Can process suitable liquids and thick slurries under high shear | The feed must still be flowable and compatible with the selected equipment configuration. |
| Can be used as the central emulsification stage in a bitumen-emulsion line | The mill alone does not prepare the bitumen and aqueous phases or store the finished emulsion. |
Practical Advantages of a Colloid Mill
One wet stage can perform several related operations
For a suitable formulation, the same rotor–stator passage can reduce suspended material, break down soft agglomerates, disperse solids, emulsify liquid phases, and improve uniformity. This can make the mill an effective central process stage when those results are required together.
Inline treatment suits continuous process layouts
Prepared product can pass through the mill between upstream preparation and downstream handling. This is relevant to road-material systems where controlled streams are delivered to a high-shear stage. GlobeCore’s bitumen-emulsion production equipment illustrates the broader process context in which a colloid mill operates.
Operating variables can be evaluated systematically
Engineers can study the effects of the working gap, feed rate, temperature, and number of passes. A controlled trial program can identify whether one pass is adequate or whether recirculation is justified. This flexibility is useful during formulation development, but each trial must record the complete operating condition.
The machine is relevant across different wet formulations
Verified GlobeCore documentation identifies colloid-mill applications in food, chemical, pharmaceutical, cosmetic, construction, bitumen-emulsion, and modified-bitumen processing. This demonstrates broad application relevance, not universal suitability. Each material still requires an engineering review.
Important Disadvantages and Process Limitations
It is not a dry grinder
A colloid mill requires a suitable liquid or semi-liquid processing environment. If the target is a dry mineral powder, dry spice, or other free-flowing solid, use equipment designed for dry size reduction. Adding liquid solely to accommodate a colloid mill changes the formulation and may change downstream processing requirements.
Feed preparation cannot be skipped
The mill should receive a controlled, flowable feed without foreign objects or uncontrolled pieces that the selected configuration has not been confirmed to accept. Large feed, poorly wetted powders, unstable phase ratios, bridging, or intermittent flow should be corrected upstream with appropriate preparation, coarse reduction, mixing, screening, metering, or transfer equipment.
Performance is formulation-specific
A published nominal capacity must not be transferred automatically from water or another reference material to a viscous slurry, food paste, bitumen emulsion, or modified binder. Practical throughput and the achieved result can change with the formulation and operating conditions.
Actual results depend on the material, recipe, initial particle size, solids content, viscosity, temperature, feed rate, working gap, and number of processing cycles. When documented data do not cover the proposed product, testing with the customer’s actual formulation is recommended.
Temperature and viscosity interact with operation
Temperature can change viscosity and flow behavior. Viscosity, in turn, affects feeding, pumping, pressure loss, and practical throughput. Additional passes increase processing history and can affect product temperature. Inlet and discharge temperature should therefore be recorded during trials, and any required heating or cooling should be handled by properly selected process equipment.
Cleaning and changeovers require planning
The rotor–stator zone, connected piping, valves, seals, and any recirculation loop must be included in the cleaning or flushing procedure. The required method depends on the formulation, plant rules, product-contact materials, cleaning media, and supplied configuration. Cleaning time also affects sustained production output.
A standalone mill is not a complete plant
A mill does not automatically provide raw-material storage, accurate dosing, phase preparation, bulk mixing, temperature conditioning, transfer pumping, maturation, quality-control testing, finished-product storage, filling, or packaging. Scope boundaries must be clear before purchase.
Road-Construction Applications: Emulsion and Modification Are Different
| Application | Material system | Colloid mill duty | Separate line functions |
|---|---|---|---|
| Bitumen emulsion | Prepared bitumen and aqueous phases | Wet dispersion, emulsification, and homogenization | Preparation and metering of both phases, pumping, controls, receiving, and storage |
| Polymer-modified bitumen | Flowable bitumen with a suitable modifier | Wet modifier reduction, dispersion, and homogenization where confirmed | Bitumen conditioning, modifier feeding, premixing, circulation or holding, thermal management, and storage |
A mill selected for bitumen-emulsion duty should not automatically be assigned to polymer modification, or vice versa. Review the separate bitumen-modification equipment category when the objective is modified binder rather than a water-based emulsion.
How a Colloid Mill Differs from Related Equipment
| Equipment | Primary role | Key distinction |
|---|---|---|
| Colloid mill | Wet size reduction, dispersion, emulsification, and homogenization | Applies concentrated treatment in a rotor–stator working zone to prepared, flowable feed. |
| Tank mixer | Bulk blending and circulation | Prepares or maintains vessel contents but does not automatically provide the same milling action. |
| Dry grinder | Size reduction of dry solids | Selected for dry powder or granule production rather than wet emulsification. |
| High-shear mixer | Intensive mixing and dispersion | Its geometry and verified process result must be compared with the required colloid-milling duty. |
| Disperser | Wetting and distributing solids in liquid | Does not necessarily provide the same restricted rotor–stator passage. |
| Homogenizer | Improving product uniformity | A broad equipment class; the operating principle and confirmed performance must be checked. |
| Ball mill | Media-based particle-size reduction | Uses grinding media and a different processing mechanism. |
| Complete production line | Coordinates preparation, processing, control, and handling | Includes many functions beyond the standalone mill. |
Equipment-Selection Factors
- Define the finished product. State whether it is a suspension, emulsion, paste, slurry, modified binder, or dry powder.
- Identify the required operation. Separate bulk mixing, dry grinding, wet size reduction, dispersion, emulsification, and homogenization.
- Provide the complete formulation. Include all components, proportions, solids content, and order of addition.
- Describe the feed condition. Report initial particle size, temperature, viscosity at that temperature, flowability, and any tendency to settle, bridge, or separate.
- Define throughput carefully. Distinguish instantaneous mill flow from sustained line output after startup, recirculation, changeovers, and cleaning.
- Set measurable acceptance criteria. Specify target texture, particle or droplet-size criterion where applicable, dispersion quality, stability requirement, or downstream product tests.
- Plan the trial variables. Record working gap, feed rate, number of passes, inlet and outlet temperatures, and sample results.
- Review line hydraulics. Evaluate pumps, piping, valves, vessel levels, metering stability, and downstream resistance as one system.
- Specify cleaning. Define cleaning or flushing media, sequence, frequency, access, inspection, residue handling, and allowable downtime.
- Confirm utilities and integration. Provide electrical supply, thermal services, controls, installation space, access, and inlet and outlet connection requirements.
For nonfood and general wet-processing applications, the colloid mills for different applications category provides another starting point. Application relevance still does not replace formulation-specific selection.
Frequently Asked Questions
Is a colloid mill suitable for dry grinding?
No general dry-grinding suitability should be assumed. A colloid mill is primarily a wet-processing machine for flowable liquids, slurries, emulsions, and pastes. Dry powder production requires equipment selected for that duty.
Can a colloid mill replace a mixer?
Not automatically. A mixer provides bulk blending and circulation. A colloid mill applies intensive localized treatment to material flowing through the rotor–stator zone. Many lines require both.
Does a smaller working gap always produce a better result?
No. Gap is only one variable. It must be assessed with feed condition, viscosity, temperature, feed rate, initial particle size, target result, and equipment instructions.
How many passes are required?
There is no universal number. One formulation may meet its target in one pass, while another may require additional cycles. Determine the requirement from documented product-specific results or controlled trials.
Is a colloid mill a complete bitumen-emulsion plant?
No. It is the high-shear emulsification stage. Separate equipment prepares and meters the bitumen and aqueous phases and handles the finished emulsion.
Can nominal capacity be used as guaranteed throughput?
No. A capacity stated for water or another material is not guaranteed for a different formulation. Confirm practical output under representative process conditions.
Discuss the Actual Process Before Selecting Equipment
The balance of colloid mill advantages and disadvantages depends on the real product, not the equipment name. For an engineering review, provide the formulation, feed condition, required throughput, target texture or particle size, viscosity, temperature limits, cleaning method, available utilities, and line-connection requirements. Testing with the actual formulation is recommended whenever the required result is not confirmed by documented data.
